This article contains a brief survey of the different carburettors fitted to CT90 range, and an in depth look at the the K28A installed on my CT90 K1. The K28 carb was used on the K1-K3 (1969-72) models, and is very similar to the subsequent 556a model that was used until 1977.
carburettor models
The models used are listed below. Keihin followed their usual bewildering naming convention, and I've highlighted below where I am unsure of any details.
T20A, T90DS, 572A (1966-1968)
The K0 Models (pre-1969) were fitted with an air filter mounted on the down tube of the frame (same as the Super Cub) and the carburettors from this era were all therefore designed with their "mouth" towards the front of the bike. It seems the T90A, T90DS and 572A all made an appearance, but I am not sure in which order. Some of the carbs were marked T9A - possibly an alternative model number for the T90A?
T20A (1967?) - note the air intake is towards the front of the bike
T90KA (early 1969)
The early and late K1 (1969) models came with different carburettor versions. The early model carburettor - the T90KA - was fitted to K1 engines with a serial number before 23941. This is the first model to be fitted with an altitude compensation knob (see below for an explanation). This model is easily distinguished by the 4 screws used to hold the float bowl (the later carbs used 2 screws).
T90KA - note the 4 screws and the angled mounting point for the intake tube that connects the carb to the engine, plus the first model to support an altitude adjuster knob (see below for details). The intake tube will not fit the later model carbs.
K29A (late 1969)
Later in 1969 Honda introduced a new model, the K29A. These were installed on bikes from frame number CT90-233448/engine number CT90E-234852.
my 1969 K29A (note the plastic cap on the altitude compensation knob is missing). Some of the carbs were stamped K9A (right), but appear identical.
K29B (1970-1971)
The carbs fitted to the K2 and K3 models are the same as the K28A but the main jet was increased from a #62 to #65. This change coincided with the decision to move the air intake from the side of the frame below the seat to a vent built into the luggage rack.
The air cleaner arrangement on the left is unique to the 1969 K1 / The 1971 bike on the right has the updated air cleaner arrangement that allows the bike to pass through deeper water.
556A (1972-1977)
The 556A replaced the K29 - they are visually similar, but have different top caps
note the top cap on the top cap design on the 556A (pictured on the far right, next to a K29B).
note also the change to the float height and that this model uses a #62 main jet.
Note that the 23.5 measurement on the left applies to the T90KA carb fitted to the early 1969 models, the later model K1s should be set to 20mm
B27A, PB28A (1978-1979)

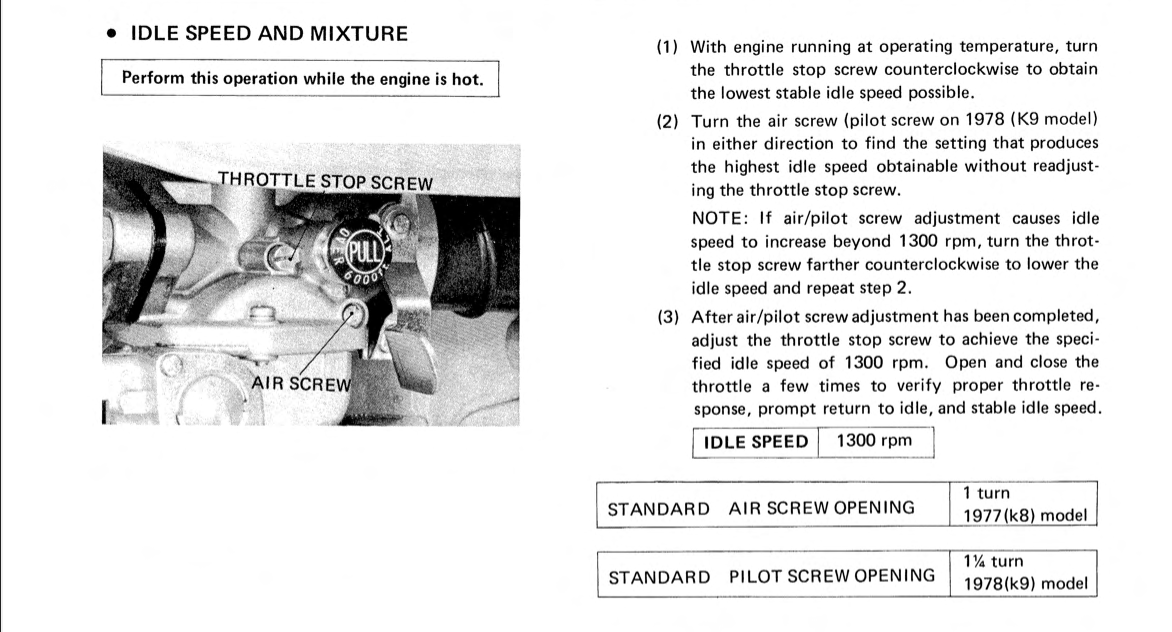

A one year only model (the B27A) was introduced in 1978
The 1978 engine was also equipped with a system to prevent crankcase emissions from entering the atmosphere: Combustion blow-by gas that has passed from the combustion chamber into the crankcase is returned through the air cleaner back to the combustion chamber rather than being ejected directly to the atmosphere:

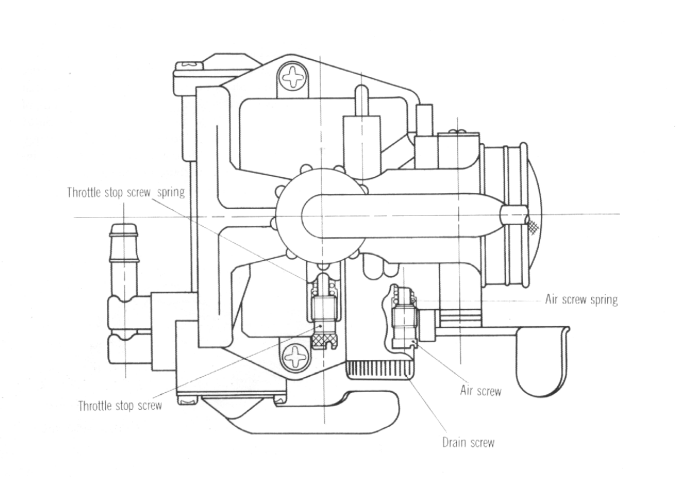

The PB28A adopted in 1979 is based on the same range of carbs fitted to the C90 Super Cubs of the same era, and this range of carbs is described below:
Nick
This was the end of the high-altitude selector device - instead Honda recommended fitting a smaller main jet (#60 vs #65) for high altitude riding.
high altitude selector
Between late 1969 and 1977, all CT90 carbs were fitted with a high altitude selector (see diagram above).
The instructions are to pull the knob out when riding above 6000ft. When the knob is pulled out an internal check valve exposes three separate passages: the first connection is to an air passage that opens in the mouth of the carb, and this air is feed to to the main jet air passage and the idle air passage. The additional air added to the main and idle circuits compensates for the lower oxygen levels found when up high.
cleaning and replacement parts
all the parts
It is getting difficult to find original brass parts for carburettors of this era, and Honda stopped selling some key parts like the needle jet and jet needle years ago. If at all possible, try and make use of any original brass parts, as the aftermarket parts are not guaranteed to be exact replacements. I got lucky with mine - only one bad screw thread (fuel tap), very little corrosion and all the original brass parts.
The high altitude jets mean there are more than the normal number of orifices to check for blockages: in addition to the air passage for the high altitude supply, you need to check the main and idle air passage that go from the mouth of the carb to emulsion tube and idle jet holder respectively. Then check the pilot and main jets are clear and that fuel flows from the fuel tap (the filter is on the other side to the on/off/reserve switch and passes through a passage in the fuel bowl). Finally check the float bowl breather is clear.
The airways accessible from the mouth of the carb must all be clear (left) / Note the hole in the channel for the o-ring on the other side of the carb (right) is not an airway but an artefact of the manufacturing process where access was needed to cross drill one of the internal passages.
You can still get a "packing" kit from Honda with the gaskets, o-rings, fuel tap filter and high altitude plunger tip , so I replaced all those. The carb was fitted with the original 62 main and 35 idle jet. I swapped the main jet to a #65: as mentioned above, in 1970 Honda changed over to a 65 main - apparently a service bulletin at the time explained the smaller jet was too lean and causing overheating problem when the bikes were driven flat-out for long periods.
Other points of note:
- There is a small o-ring on the emulsion tube/needle jet which seals off the emulsion tube passage - don't forget to replace that as it must seal properly to avoid an air leak.
- The black insulator on the K1 goes between the carb and the inlet pipe (carb >gasket > insulator > inlet pipe> gasket > cylinder head).
- Finally don't be alarmed by the bent washer behind the fuel tap - this wavy washer acts as a spring and puts pressure on the fuel lever cover which presses on the rubber packing to seal it.
air cleaner
Hard to believe, but the air cleaner used on the 1969 K1 model is still available new from Honda (note this is a 1 year only design and won't fit on other CT90s).
The foam air cleaner element needs to be soaked in engine oil and then wrung out. It is held on the metal mesh frame of the of the air cleaner by a springy metal band (also still available!)
The plastic air cleaner housings are unobtainable, so I had to fix up the damaged one I had (inexplicably, it had a big hole cut into the base). I filled the hole and also reinstated the small plastic tab that is used to fix the casing to the frame (this bit seems to always break off - perhaps because people forget it is there given it is hidden by the rubber part of the air cleaner once installed).
You need a 1.5mm o-ring to seal the air cleaner in the housing. I couldn't find one the right size (about 8.5cm diameter) but it is easy to make one of the correct size by cutting a section from an oversize one (you can super-glue the ends together).
No probs fitting the carb, although I had to tap the mounting holes in the air inlet flange and make some new studs by cutting short a couple of bolts.
installation
finally I had to make this bracket to mount the housing to the frame
The down tube cover is new (from a C110, but these fit the older bikes too). It was the wrong colour so I painted it and the air cleaner cover GM Dark Grey. To my eyes it is a not bad match to the colour shown on the adverts I've seen for later models, but it seems much darker that the photos of original 1969 models I've seen (although presumably these are all pretty faded by now).
